Why Is There 1 In The Shockley Diode Equation I Thought We Began Deriving This Equation In The Place Where There S No Drift Quora

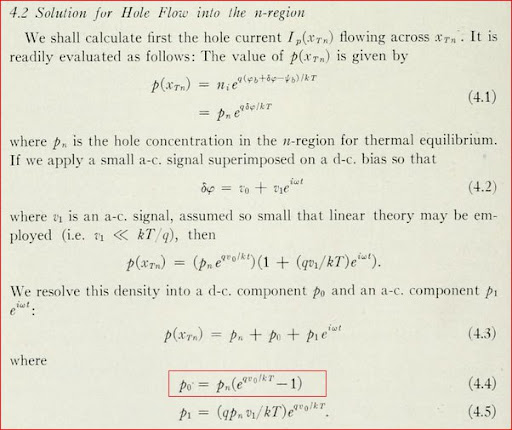

Here I wont be deriving the original 1949 paper of Shockley which used Fermi-Dirac statistics.

Shockley diode equation. So take V towards minus infinite and you receive a physical value for c and with the first step also for A. The Shockley equation with minor modifications is what is used in SPICE simulations for forward current in silicon Schottky and LED diodes. Excessive voltage rise or dvdt. It conducts when it is forward biased and stops conducting when it is reverse biased. The parameter list is given as from here. The parameters of Shockley diode equation is n emission coefficient I current flowing through the diode Vd voltage drop Vt thermal voltage Is reverse saturation current.

If the applied voltage across the diode increases at a high rate of change it may trigger. In the equation the term V_D is the voltage thats across the diodes terminals. Where ID current through the diode VD diode voltage Is leakage or reverse saturation current n emission coefficient or ideality factor for germanium n1 for silicon it ranges in 11-18. The Shockley diode equation formula is I Is exp VdnVt - 1. Definition of Shockley diode equation in the Medical Dictionary by The Free Dictionary. Invest 2-3 Hours A Week Advance Your Career.

The equation is called the Shockley ideal diode equation when n the ideality factor is set equal to 1. KBoltzmann constant 138064852 7910 23. The ideality factor n typically varies from 1 to 2 though can in some cases be higher depending on the fabrication process and semiconductor material and is set equal to 1 for the case of an ideal diode thus the n is sometimes omitted. Note that you can either use a voltage source to apply a constant voltage of V_D Volts across the diodes terminals and then measure the current I_D thats flowing through the diode or. Ad Build your Career in Data Science Web Development Marketing More. The Shockley diode equation.

It is an active componentsIt is named after its inventor. Find out information about Shockley diode equation. Flexible Online Learning at Your Own Pace. Shockley diode is a four layer P-N-P-N semiconductor device. Most diodes are semiconductor devices. However it doesnt model the breakdown region and ignores the minority change carriers.

It is named after Bell Telephone Laboratories co-inventor William Shockley. IIs e V_D nV_T -1 Idiode current. B qV kT where k 861758 x 10 5 eVK. The Shockley ideal diode equation or the diode law gives the IV characteristic of an ideal diode in either forward or reverse bias or no bias. Isscale current or reverse bias saturation current. Foreward current U_F.

A semiconductor diode the most common type today is a crystalline piece of semiconductor material with a pn junction connected to two electrical terminals. The assignment of B to a physical entity is done with the Boltzmann factor where E is replaced by the voltage B. The main difference between the different types other than the number such as Is which is quite different for an LED is the temperature dependence of the saturation current for Schottky diodes. Looking for Shockley diode equation. Related formulas Variables Categories. Note that Shockley diodes may be fired in a way other than breakover.

Foreward voltage U_Th. The Shockley diode equation is a mathematical model of the forward and reverse biased characteristic of a diode. LED modeling with Shockley diode equationHelpful. Where diode current reverse bias saturation current. The Shockley diode equation or the diode law named after transistor co-inventor William Shockley of Bell Telephone Laboratories gives the IV current-voltage characteristic of an idealized diode in either forward or reverse bias applied voltage. The main difference between conventional diode and Shockley diode is it starts conducting when the forward voltage crosses its breakdown voltage.

The thermal voltage U_th frackT e m. An adjusting factor to real diodes m 12 for ideal diodes m 1. VT thermal voltage which is Where q. The current density in a forward biased pn junction is generally described by the Shockley equation J eD LN eD LN n eV kT h hd e ea i 2 exp 1 Shockley equation 1 where e is the electronic charge k is Boltzmanns constant T is temperature K V. Two-terminal electronic device that permits current flow predominantly in only one direction. Like pn junction diode It conducts in forward bias and stops conducting in reverse bias.

From the Shockley equation I_F I_RefracU_Fm U_Th -1 with. A latched Shockley diode is re-set back into its nonconducting state by reducing current through it until low-current dropout occurs. The major difference between conventional diode and Shockley diode is it starts conducting when the forward voltage exceeds break-over voltage. Nideality factor or emission coefficient. Shockley diode is a four layer P-N-P-N device. The Shockley diode equation also known as the diode law is the IV current-voltage characteristic of an idealised diode in either forward or reverse bias applied voltage.
